CEE Power Connectors
Swan EMS pole connectors are the highest rated, safest and finest quality powerlock connectors as used by the power distribution, events, military and cable assembly industries worldwide. Powersafe connectors are available as inline plugs and panel mount sockets that easily terminate to low voltage copper power cables using industry standard crimp tools or set-screw contacts.
Plug Tops IP44 IP67
Swan EMS plugs and sockets are tested and certified in compliance with the following international and national standards, among others:
- IEC 60 309-2 | IEC 60 309-1 | SS EN 60309-1 | SS EN 60309-2 | CEE17 | SEMKO 117 | VDE 0623 | BS 4343,EN 50 250.
- Connectable cable size: 16A: 1-2,5 mm² | 32A: 2,5-6 mm² | 63A: 6-16 mm² | 125A: 16-50 mm²

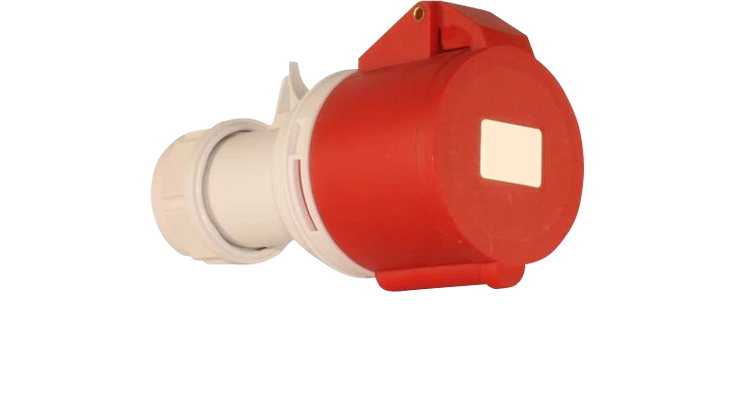

Couplers IP44 IP67
Swan EMS plugs and sockets are tested and certified in compliance with the following international and national standards, among others:
- IEC 60 309-2 | IEC 60 309-1 | SS EN 60309-1 | SS EN 60309-2 | CEE17 | SEMKO 117 | VDE 0623 | BS 4343 | EN50 250

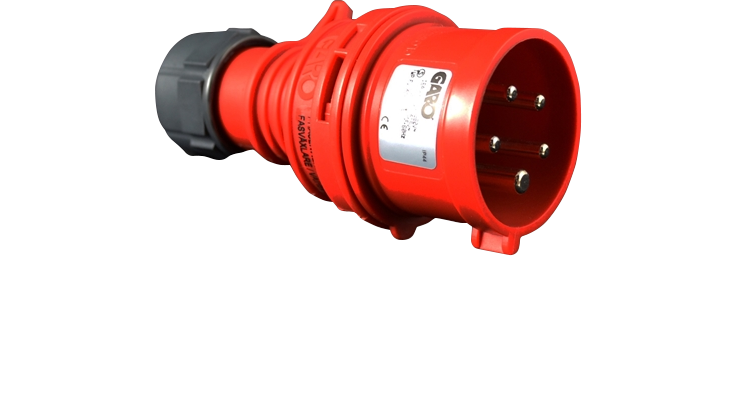

Phase Inverters(FV) IP44
Swan EMS plugs and sockets are tested and certified in compliance with the following international and national standards, among others:
- IEC 60 309-2| IEC 60 309-1 | SS EN 60309-1 | SS EN 60309-2 | CEE17 | SEMKO 117 | VDE 0623 | BS 4343 | EN50 250

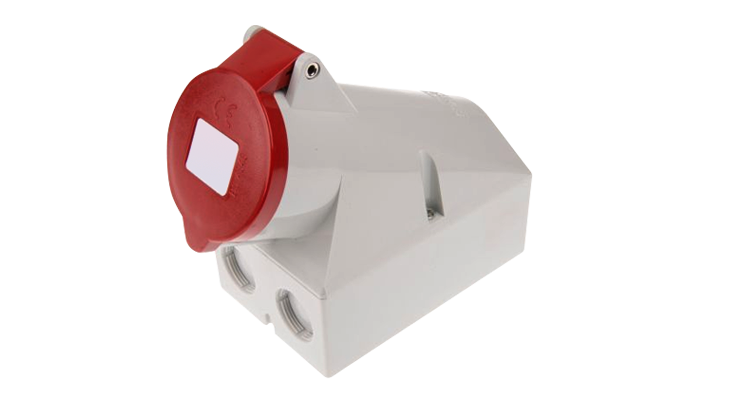

Wall Socket IP44 IP67
Swan EMS plugs and sockets are tested and certified in compliance with the following international and national standards, among others:
- IEC 60 309-2 | IEC 60 309-1 | SS EN 60309-1 | SS EN 60309-2 | CEE17 | SEMKO 117 | VDE 0623 | BS 4343 | EN50 250

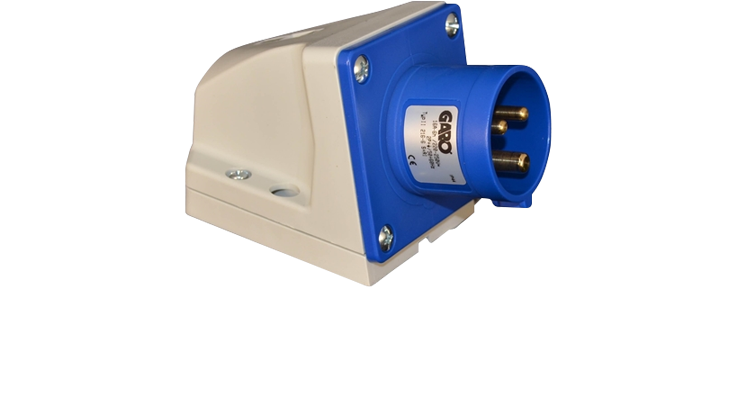

Wall Inlet IP44 IP67
SWAN EMS plugs and sockets are tested and certified in compliance with the following international and national standards, among others:
- IEC 60 309-2 | IEC 60 309-1 | SS EN 60309-1 | SS EN 60309-2 | CEE17 | SEMKO 117 | VDE 0623 | BS 4343 | EN50 250

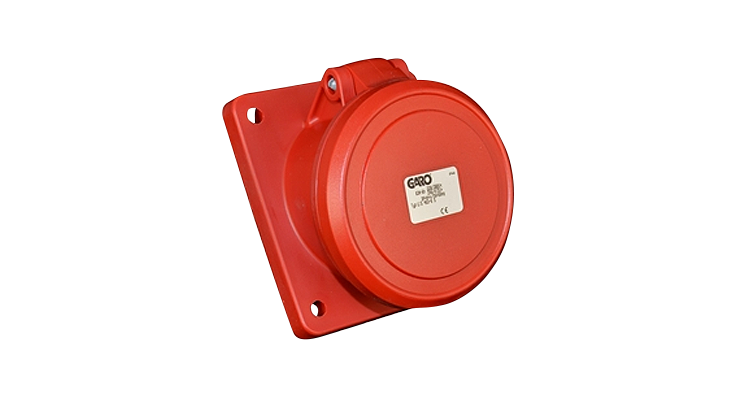

Panel Sockets IP44 IP67
Swan EMS plugs and sockets are tested and certified in compliance with the following international and national standards, among others:
- IEC 60 309-2 | IEC 60 309-1 | SS EN 60309-1 | SS EN 60309-2 | CEE17 | SEMKO 117 | VDE 0623 | BS 4343 | EN50 250

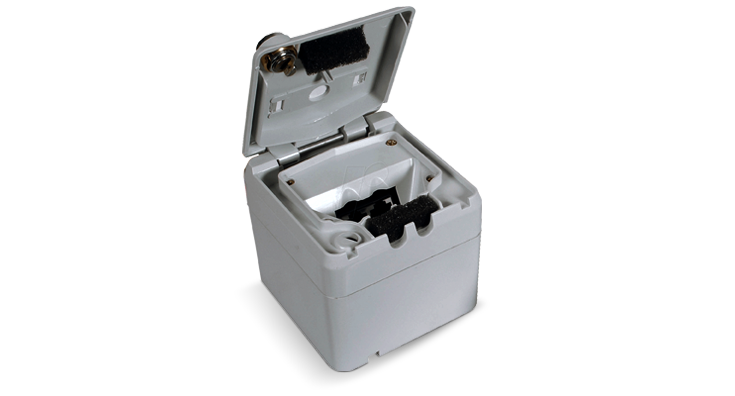

Lockable Socket Boxes IP44
- Waterproof socket for wall and panel mounting. Connectable cable size: 1-2,5 mm² and solid cable 1-4 mm². Supplied with cable gland.
- Wall sockets can also be fitted with locks.
- Degree of protection IP44.
Panel Inlets IP44 IP67
Swan EMS plugs and sockets are tested and certified in compliance with the following international and national standards, among others:
- IEC 60 309-2 | IEC 60 309-1 | SS EN 60309-1 | SS EN 60309-2 | CEE17 | SEMKO 117 | VDE 0623 | BS 4343 | EN50 250

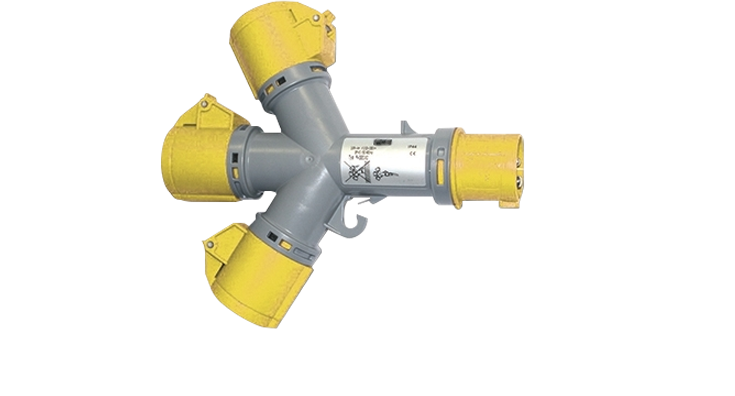

Multi Connectors & Adaptors
With IEC/CEE 16A socket inlet these units are designed with flexibility in mind. Our connectors come in either IP44 or IP67 protection class and are designed to take three connection leads.
The 16A adaptor facilitates the conversion from a CEE type connection to a 13A 3Pin British Standard socket outlet. This unit meets protection class IP44.

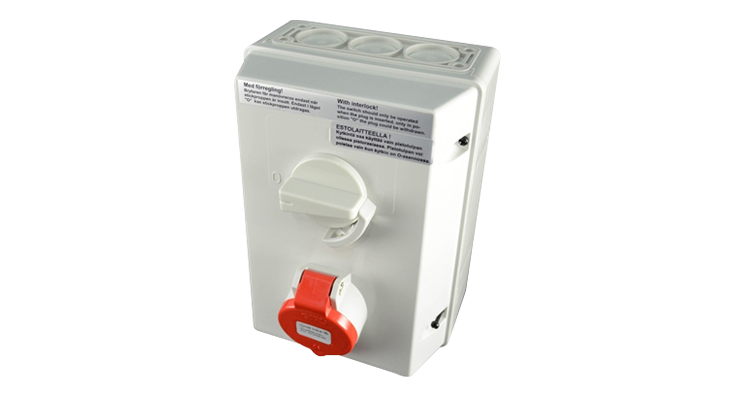

Interlocked Sockets IP44 IP67
For wall mounting. The UB enclosure has plenty of space. It has FL13 flanges top and bottom in combination with knock-outs. Supplied with cable gland.
Connectable cable size: max 35 mm².>
Degree of protection IP44.
Interlocked socket outlet in watertight design. Cable connection possible from top and bottom.
TECHNICAL DATA:
- Stable design for wall mounting.
- Mechanical interlock – unit cannot be switched on without plug.
- Connection and plug is locked-in once unit is switched on.
- Large connecting area.
- Padlockable in OFF position.
- 180° rotatable housing.
- Ready wired for connection up to DIN-rail.
- Top, bottom or rear cable entry.

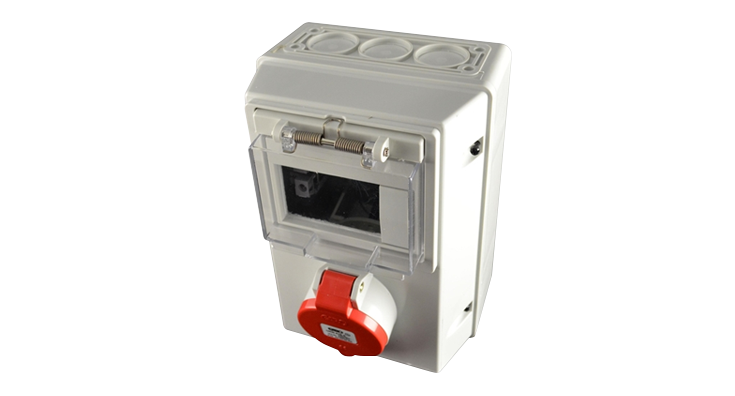

Combination Unit IP44 IP67
- These units facilitate socket protection by RCD
- Enclosure has plenty of wiring space
- FL 13 flanges in top and bottom combined with knock-outs: 6 x Ø 32 mm
- Supplied with 2 x membrane cable glands M32
- Degree of protection IP44

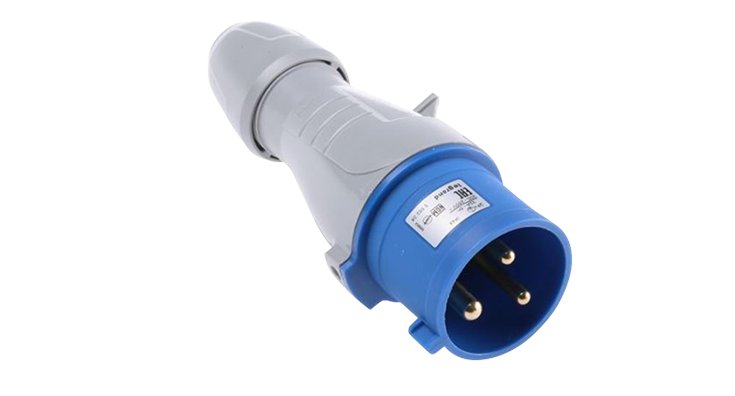

Pro Quick Connectors IP44
Swan EMS PRO QUICK range of PLUGS and SOCKETS with fast connections requires no tools, just these simple steps:
- Push in cable
- Push your thumb to close connector
- CONNECTABLE CABLE SIZE:16A: 1-2,5 mm² | 32A: 2,5-6 mm²

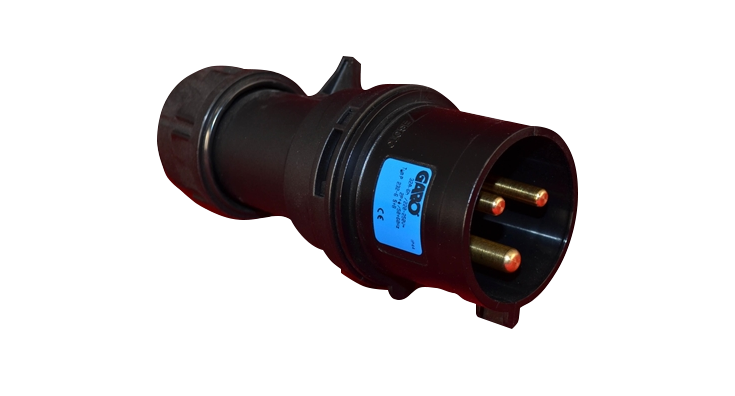

Pro Scene Black IPP44 IP67
For situations where there is a special requirement for top quality and invisibility. At various events in the entertainment arena, there is a need for ‘invisible’ electricity. Cables, sockets and terminal boxes need to be discreet and not be seen. Swan ENMS’s PRO SCENE range comprises the more commonly used plugs and couplers for such events.
- Connectors are screw type simple connect as with the SWAN EMS Pro Basic range.
- PLUGS & COUPLERS 16 and 32A.
- CONNECTABLE CABLE SIZE:16A: 1-2,5 mm² | 32A: 2,5-6 mm²
