Distribution Box and Single Pole Connectors

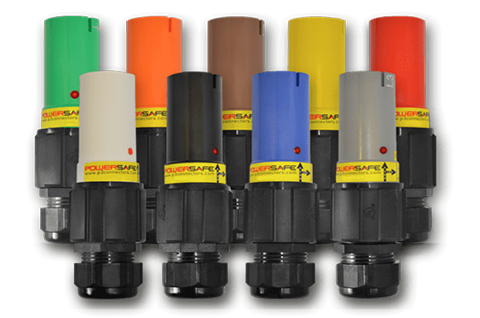

Powersafe Single Pole Connectors
Swan EMS’s Powersafe single pole connectors are the highest rated, safest and finest quality powerlock connectors as used by the power distribution, events, military and cable assembly industries worldwide. Powersafe connectors are available as inline plugs and panel mount sockets that easily terminate to low voltage copper power cables using industry standard crimp tools or set-screw contacts. Termination to aluminium cable is also possible with our bimetallic contacts.
Assembled in the United Kingdom
Swan EMS’s electrical connectors are 100% manufactured and assembled in the UK to ISO 9001:2015 quality standards. Our Powersafe connectors are UL/VDE and CE certified. The electrical power connectors can be used for high current connections up to 800 amps in single or three phase electrical applications.

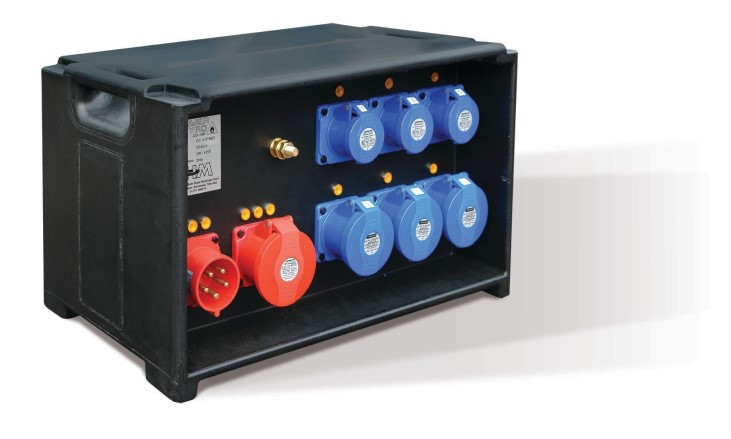

Powersafe Distribution Box
The Powersafe Power Distribution Box is an electrical connection point for single pole connectors on three phase electric power up to 800 amps. The Powersafe Box has a sequential mating locking system to ensure safety circuits are connected first and disconnected last (FMLB). Furthermore, the keyed design eliminates the possibility of electrical connection errors. The powerlock box accepts connection of Powersafe power connectors and is compatible with other manufacturers. The Powersafe powerlock box is a 1P heavy duty electrical device that is suitable for low voltage power distribution.
About Powerlock Box
Powersafe Sequential Mating Box available as source or drain versions available with either 5 ports or 4 ports (no neutral). Alternatively, ask us about a Dummy Plug to turn a 5 port box into a 4 port box temporarily. The straight front panel has two panel sizes, 88mm (2U) and 108mm (4U).
The Powersafe box can be panel-mounted, providing the most cost-effective solution, or brought out to an external or safe position. Large power connections can be catered for by stacking the units allowing for even the largest of low voltage supplies to be connected in a safe way.

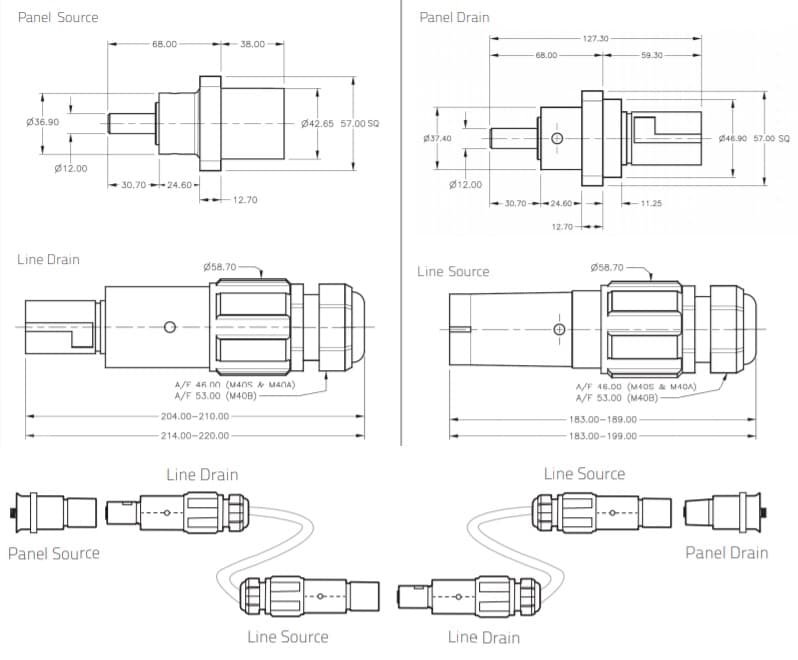

Supports standard Powersafe Connectors
The box utilises standard Powersafe Connectors in either drain or source. The power distribution box has mechanically keyed ports to ensure correct phase connection, the ports are lockable to prevent accidental disconnects and colour coded to suit international wiring colour standards.
